Mass spectrometry is one of the most powerful analytical techniques used in chemistry, pharmaceuticals, environmental research, and life sciences. It helps scientists determine the molecular composition of compounds with remarkable accuracy. When analyzing mass spectra, one of the important patterns researchers look for is isotopic distribution. Learning how to recognize these patterns can greatly improve the interpretation of experimental data.
In this guide, we’ll explain how to identify Isotopic Peaks in mass spectrometry, why they occur, and how scientists use them to better understand molecular structures.
Understanding Isotopes and Their Role in Mass Spectrometry
To understand isotopic patterns in mass spectra, it’s important to first know what isotopes are. Isotopes are atoms of the same element that have the same number of protons but different numbers of neutrons. Because of this difference, isotopes have slightly different atomic masses.
For example, carbon has two stable isotopes: carbon-12 and carbon-13. While carbon-12 is the most abundant form, carbon-13 occurs naturally in smaller amounts. When molecules containing carbon are analyzed using mass spectrometry, signals from these different isotopes appear in the spectrum.
These additional signals create a pattern around the main molecular ion peak. These patterns are known as Isotopic Peaks, and they provide valuable information about the elemental composition of the molecule.
Why Isotopic Patterns Appear in Mass Spectra
When a sample is ionized inside a mass spectrometer, molecules are converted into charged particles. These ions are then separated based on their mass-to-charge ratio (m/z). Since isotopes have slightly different masses, molecules containing different isotopic combinations will appear at slightly different m/z values.
For example:
- The main peak represents the molecule containing the most abundant isotopes.
- A peak one unit higher may represent a molecule containing one heavier isotope such as carbon-13 instead of carbon-12.
- Additional peaks may appear depending on the number of atoms and their natural isotope distribution.
Because each element has a characteristic isotope abundance, the resulting pattern can help scientists determine which elements are present in a compound.

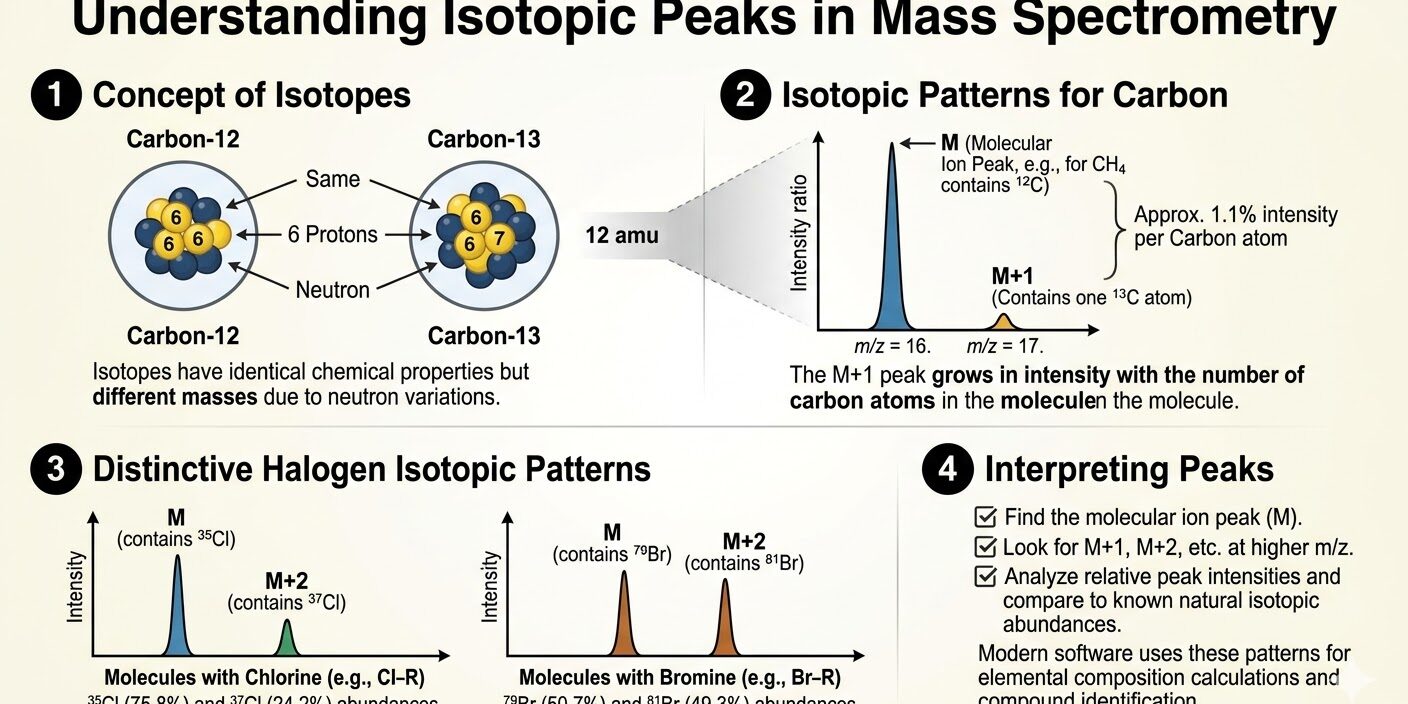

Steps to Identify Isotopic Peaks in Mass Spectrometry
Interpreting isotopic patterns requires careful observation of the mass spectrum. Here are some practical steps researchers use.
1. Locate the Molecular Ion Peak
The first step is to identify the molecular ion peak, often labeled as M. This peak corresponds to the intact molecule that has been ionized but not fragmented.
Once the molecular ion is identified, researchers look for neighboring peaks at slightly higher m/z values. These peaks often indicate isotopic variations within the molecule.
2. Examine Peaks One or Two Mass Units Higher
After locating the molecular ion, look for peaks at M+1, M+2, or even M+3. These peaks occur because some atoms in the molecule are replaced by their heavier isotopes.
For instance:
- The M+1 peak commonly arises from the presence of carbon-13.
- The M+2 peak may indicate isotopes such as chlorine-37 or sulfur-34.
The relative intensity of these peaks can reveal how many atoms of a particular element are present in the molecule.
3. Analyze Peak Intensity Ratios
Certain elements produce very recognizable isotopic patterns. By comparing the relative intensity of peaks, researchers can often identify specific elements.
Examples include:
- Chlorine typically produces a characteristic pattern with two peaks in approximately a 3:1 ratio.
- Bromine produces two peaks with almost equal intensity.
Recognizing these patterns helps confirm whether such elements are present in the sample.
4. Consider Natural Isotope Abundance
Each element has a known natural isotope abundance. For example, carbon-13 makes up about 1.1% of natural carbon. If a molecule contains several carbon atoms, the probability of seeing a peak one mass unit higher increases.
This means that larger molecules tend to have stronger M+1 peaks. By considering these probabilities, researchers can estimate the number of carbon atoms in a compound.
5. Use Software Tools for Confirmation
Modern analytical laboratories often use specialized software to analyze isotopic distributions automatically. These tools simulate expected isotopic patterns and compare them with experimental data.
Advanced mass spectrometry platforms, including those developed by Iroa technologies, help researchers process complex spectra efficiently and obtain reliable molecular identification.
For more background information on mass spectrometry principles, you can also explore resources from the American Society for Mass Spectrometry:
https://www.asms.org
Applications of Isotopic Pattern Analysis
Identifying isotopic patterns is not just a theoretical exercise. It plays a crucial role in several scientific and industrial applications.
Pharmaceutical Research
In drug development, scientists use isotopic patterns to confirm the molecular structure of newly synthesized compounds. Accurate mass analysis ensures that the correct compound has been produced.
Environmental Analysis
Environmental scientists analyze pollutants in air, water, and soil samples. Isotopic patterns help identify trace contaminants even at very low concentrations.
Metabolomics Studies
In metabolomics research, isotopic data helps track metabolic pathways and understand how biological systems process molecules. Advanced platforms developed by companies like Iroa technologies support researchers in analyzing complex biological samples.
Food and Agricultural Testing
Mass spectrometry is also used to detect food contaminants, pesticides, and additives. Isotopic patterns provide additional confirmation when identifying unknown substances.
Common Challenges When Identifying Isotopic Patterns
Although the concept is straightforward, real-world data can sometimes be complicated. Several factors may make interpretation difficult:
- Overlapping peaks from multiple compounds
- Fragmentation patterns that resemble isotope signals
- Low signal intensity in trace analysis
Careful data interpretation and high-resolution instruments are essential for distinguishing true isotopic patterns from other spectral features.
Conclusion
Understanding how to recognize Isotopic Peaks in mass spectrometry is a valuable skill for scientists working in analytical chemistry and related fields. These peaks arise because elements exist in multiple isotopic forms, each with slightly different masses. By studying the position and intensity of these signals, researchers can gain insights into the molecular composition of a sample.
With modern instrumentation and analytical platforms from companies such as Iroa technologies, identifying Isotopic Peaks has become more accurate and efficient than ever before. As mass spectrometry continues to evolve, isotopic analysis will remain an essential tool for scientific discovery across many industries.
FAQs
1. What are isotopic peaks in mass spectrometry?
They are additional peaks that appear near the molecular ion peak due to the presence of naturally occurring isotopes of elements within a molecule.
2. Why are isotopic peaks important?
They help scientists determine the elemental composition of a compound and confirm molecular structures during chemical analysis.
3. What causes the M+1 peak in a mass spectrum?
The M+1 peak usually occurs when one atom in the molecule is replaced by a heavier isotope, such as carbon-13 instead of carbon-12.
4. How can isotopic peaks help identify elements?
Certain elements have unique isotope patterns and intensity ratios. By analyzing these patterns, scientists can determine whether elements like chlorine or bromine are present.
5. Do all molecules show isotopic peaks?
Yes, most molecules show isotopic patterns because many elements naturally occur as mixtures of isotopes, although the intensity of these peaks varies depending on the molecular composition.
